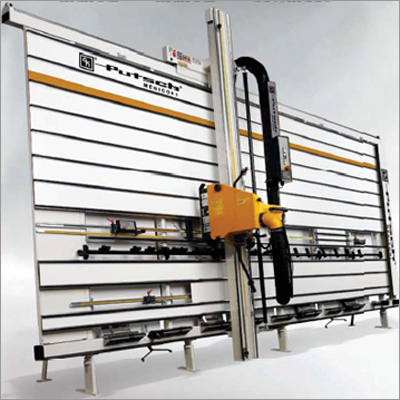

Vertical Panel Saw

Vertical Panel Saw
Vertical Panel Saw
Product Code : 01
Product Description

We are considered as the significant distributors, traders and suppliers of a wide array of Vertical Panel Saw. Our provided panel saw is widely utilized in processing of all types of density boards, wooden-based panels, shaving boards, ABS panels, organic glass plates, PVC panels, solid wood and others with similar hardness and wood structure. Manufactured utilizing cutting-edge technology and optimum quality components, the vertical panel saw can work efficiently even in complex situations. To ensure safe transit, we make sure that these products are packed in spurious quality packaging material.



Features:



  • Power efficient
  • Trouble-free functioning
  • Excellent performance
  • Give accurate required depth cut



Other detail:

  • MODEL: SVP 133
  • MAKE: PUTSCH, ITALY
  • Sparingly used

Heavy duty machine to ensure strength with a welded steel frame. Automatic shifting frame is equipped to avert the cutting of the plastic strips at the time of horizontal cuts. It has Bottom aluminium supports along with phenolic soles for assuring a safe support of the panels, and with Lift-up. Rollers for a better sliding of the same. Manual displacement of the beam and saw carriage for vertical & horizontal cuttings; these last are assured in No 4 fixed points locking to the frame.

Manual plunging & returning of saw carriage, with the help of ergonomic lever.

  • Automatic shifting frame: ELECTRIC.
  • Integrated dust exhauster along with bag.
  • Short piece cutting device on all the length of the machine
  • No 1 Stop for vertical cuttings.
  • No 4 positioners for horizontal cuttings.
  • Lift-up rollers.
  • SELF-BRAKING motor.
  • All standard accessories: Soundproofing, set service tools, safety device, user's manual.

Technical Details:

Max. length of cut

3200mm

Max. height of cut

1900mm

Max. height of horizontal cut

1700mm

Max. depth of cut

60mm

Motor output

HP 4 (Kw 3)

Blade diameter

250mm

Blade speed

5300rpm
