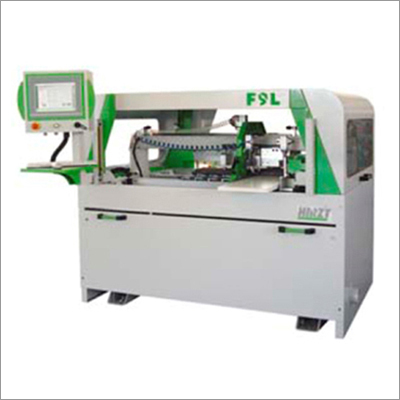

CNC Drilling Machine

CNC Drilling Machine
CNC Drilling Machine
Product Code : CDM-04
Brand Name : WOOD SHOP
Product Description

We are a prestigious organization, offering upgraded CNC Drilling Machine to our valuable clients, situated all around the nation. Perfect for drilling holes, this is utilized for manufacturing of small as well as large components of shafts. Being a customer-centric trader and supplier, we purchase this drilling machine from authorized marketers after rigorous quality inspection. Aside from this, we provide this CNC Drilling Machine in varied technical specifications and at marginal prices.

Other Detail:

  • Model: F9/L
  • Make: HIRZT
  • Year of Manufacture: year 2009

The feeding system allows any length of panel to processed, while maintaining a compact machine foot print of approximately 3m2.

Whether you are working with a single piece of material or looking to process hundreds, the F Series is quick to set up with the operator required to adjust a single sliding pressure fence. The operator then starts the cycle and a pneumatic panel clamp feeds the panel along the X axis, the boring head moves along the Y axis and the Z axis controls the boring depth.

Technical Data:

Number of vertical spindles

8

Number of horizontal spindles

1+1 (front and back boring) 1 (Side boring)

Maximum Panel Width

950mm

Maximum Boring width

800mm

Maximum Grooving/Sawing Range

600mm

Panel Feeding Speed

30m/min.

Spindle Rotation Speed

3400 rpm

Air pressure Equipments

6 bar

Working Table Height

900mm

Overall Dimensions

1650 x 2100mm

Motor(s)

2.5kw

Power

3 phase
